Before purchasing a mass flow meter, you can prepare by considering the following aspects: Determine your flow meter requirements: Identify the type of medium you need to measure (gas or liquid), measurement range, accuracy, precision, and other parameters. This will help you choose the type of flow meter that best suits your needs.

1. Type of Fluid

It is essential to identify the type of fluid being measured—whether it is a liquid, gas, or steam—as different fluids may have distinct characteristics that affect flow measurement. Fluid properties directly influence the selection of a flow meter.

For corrosive fluids, such as strong acids or alkalis used in chemical production, a flow meter made of corrosion-resistant materials must be chosen. For example, with electromagnetic flow meters, the electrode and liner materials should be selected based on the fluid’s corrosiveness. For highly acidic fluids, Hastelloy electrodes and PTFE liners may be used to prevent corrosion damage.

An important consideration when selecting a flow meter is the chemical compatibility between the flow meter materials and the fluid being measured. Some fluids may be corrosive or contain high solid content. Failure to account for these factors during selection could lead to inaccurate readings or damage to the flow meter.

For fluids containing solid particles, such as pulp in the paper industry, it is important to consider whether the flow meter’s diameter and internal structure may become clogged. Vortex flow meters are somewhat suitable for fluids with low solid content, but if the solid particles are large or highly concentrated, more robust options such as target flow meters may be preferred due to their higher tolerance for impurities.

Fluid viscosity is also a key factor in selection. High-viscosity fluids behave differently in pipelines compared to low-viscosity fluids. For instance, in the petroleum industry, positive displacement flow meters may be more suitable for measuring high-viscosity crude oil than turbine flow meters. This is because the measurement principle of positive displacement flow meters is unaffected by changes in fluid viscosity, allowing for more accurate measurement of high-viscosity flows. You can get free technical support at ARTang. Contact now.

2. Flow Range

Selecting an appropriate flow range is a critical factor when choosing a flow meter, as different flow meters are designed to operate within specific ranges and are optimized for varying flow rates. Choosing a flow meter that is mismatched to the intended flow range can lead to inaccurate readings, reduced precision, and increased maintenance and operational costs.

In addition to flow range, other factors must be considered when selecting a flow meter, such as the type of fluid being measured, pipe size and material, as well as the required accuracy and reliability. It is essential to consult with flow meter experts or suppliers to ensure the selected flow meter is suitable for the specific application and flow conditions.

3. Accuracy Requirements

The required accuracy and calibration level of a flow meter may vary depending on the specific type of meter and its application. Different flow meters offer distinct levels of precision and have unique calibration needs. Below are some common types of flow meters along with their typical accuracy and calibration requirements:

Electromagnetic Flow Meters: These meters provide high accuracy, typically within ±0.5% to ±1% of the measured flow rate.

Ultrasonic Flow Meters: Known for their wide measurement range and high precision, these meters generally offer an accuracy of ±1% to ±2%.

Vortex Flow Meters: The vortex flow meters can measure the flow of various media, including gases, liquids, and steam, with a typical accuracy of ±1% to ±1.5%.

Turbine Flow Meters: They deliver high accuracy at low to medium flow rates, usually within ±0.5% to ±1% of the actual flow.

Coriolis Flow Meters: These meters are highly accurate and capable of directly measuring mass flow. Their typical accuracy ranges from ±0.1% to ±0.5%.

Positive Displacement (PD) Flow Meters: PD meters excel in low-flow applications with very high accuracy, typically ±0.5% to ±1%.

The level of calibration needed for different flow meters can also depend on the specific application in which they are being used. For example, in critical applications where high accuracy is required, flow meters may need to be calibrated more frequently to ensure accurate readings. Additionally, factors such as changes in temperature or pressure can affect the accuracy of flow meters and may require recalibration.

4.Operating Environmental Factors

Pressure and temperature limitations significantly influence the selection of a flow meter, as different types of flow meters are designed to operate within specific pressure and temperature ranges.

Temperature Limits:

Some flow meters may not function properly under high-temperature conditions. In extreme heat environments, such as blast furnace processes in the metallurgical industry where ambient temperatures can reach thousands of degrees Celsius, it is essential to select a flow meter capable of withstanding such temperatures. For example, high-temperature vortex flow meters are specially designed with heat-resistant sensors and transducers to ensure accurate operation in elevated temperature conditions.

Pressure Limits:

In high-pressure environments, such as high-pressure transmission pipelines in the oil and gas industry, the pressure resistance of the flow meter is critical. It is important to choose a flow meter that meets the pressure rating requirements of the pipeline system to ensure both safety and measurement accuracy.

When selecting a flow meter, it is imperative to consider both pressure and temperature constraints to ensure the device meets specific installation conditions and delivers accurate and reliable flow measurements.

5. Installation Considerations

The orientation and size of the pipeline, the need for straight pipe runs, and the maintenance requirements of the flow meter can all influence the selection process.

Installation Location:

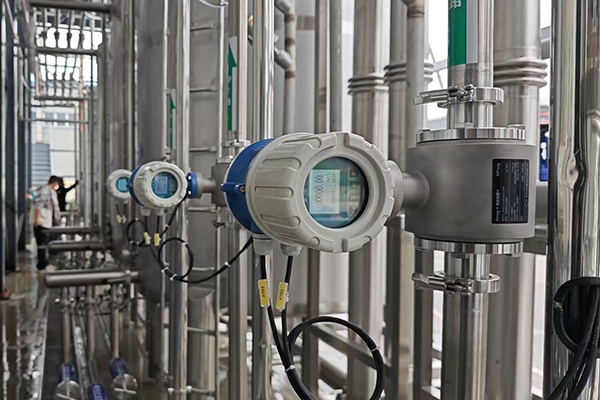

The flow meter should be installed in a stable flow section of the pipeline. Avoid locations near valves, pump outlets, or other areas where fluid velocity and pressure may fluctuate significantly, as these can affect measurement accuracy. For instance, when installing electromagnetic or turbine flow meters, it is generally required to have an upstream straight pipe length of at least 5 to 10 times the pipe diameter, and a downstream straight pipe length of at least 3 to 5 times the pipe diameter. This ensures a fully developed and stable flow profile before the fluid enters the meter.

For flow meters with specific installation requirements, such as ultrasonic flow meters, the sensors must be mounted at precise locations on the pipeline. The pipe material and wall thickness must also meet certain specifications. Generally, the installation position should allow ultrasonic signals to penetrate the pipe wall and fluid effectively. Locations with welds, bends, or other irregularities that could interfere with signal transmission should be avoided.

Installation Orientation and Vertical Alignment:

Most flow meters have a specified installation direction. For example, the axis of the turbine in a turbine flow meter must align with the flow direction. Incorrect orientation may lead to measurement errors. When installing flow meters in vertical pipelines, such as certain positive displacement types, it is crucial to ensure that the meter is mounted vertically. Deviations can affect the movement of internal mechanical components and compromise accuracy.

6. Usage and Maintenance Considerations

1. Calibration and Verification

Flow meters require regular calibration and verification to ensure measurement accuracy. The calibration interval depends on factors such as the type of flow meter, operating environment, and accuracy requirements. For example, high-precision mass flow meters may need calibration every six months, while vortex flow meters used in relatively stable industrial environments with lower accuracy requirements may be calibrated annually. Calibration must be performed using standard flow calibration equipment and strictly adhere to the meter’s calibration procedures.

For on-site verification, portable calibration devices such as handheld ultrasonic flow meters can be used. By comparing measurements with the flow meter under test, deviations can be quickly identified and adjustments made promptly.

2. Routine Maintenance and Troubleshooting

Routine maintenance includes cleaning the exterior of the flow meter and inspecting connected components. For flow meters equipped with filters, regular cleaning is essential to prevent clogging. For instance, when using a target flow meter to measure fluids containing impurities, a clogged filter can lead to increased measurement errors.

If a flow meter malfunctions, timely troubleshooting is necessary. Begin by checking the power supply and signal connections for abnormalities. Then, examine whether fluid conditions have changed, such as the introduction of new impurities or deviations in temperature and pressure beyond normal ranges. For complex issues, professional technicians may need to perform diagnostics and repairs using specialized equipment. For example, if an electromagnetic flow meter exhibits signal abnormalities, possible causes could include electrode contamination, liner damage, or electromagnetic interference. Each of these factors must be systematically investigated to restore proper operation.
