- Measuring range0-2000uS/cm
- PressureSS316L or Titanium Alloy
- Working pressure0.3MPa
- Connection1/2NPT,3/4NPT
- Applicationfood,power plant, water treatment industry


-

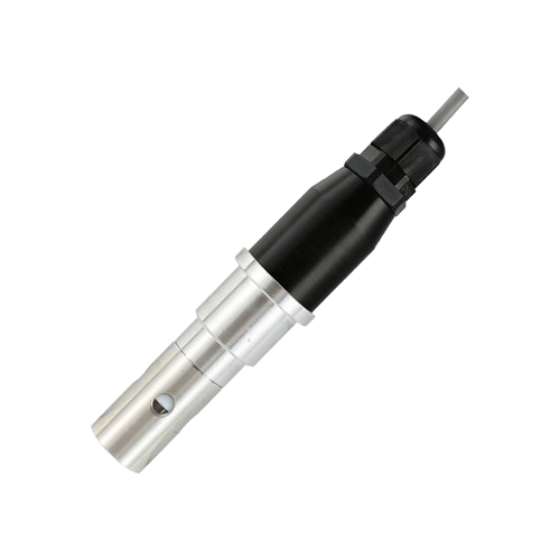

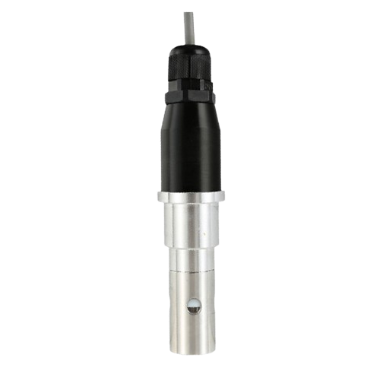

Contact Conductivity Electrode
-
Double cylindrical structure, made of titanium alloy;
-
Electrode threads can be customized (NPT 3/4 or NPT 1/2);
-
The impermeable conductive surface is resistant to all liquids except fluorinated acids.
The industrial conductivity sensors are specially used for the measurement of conductivity value of ultra-pure water,pure water.water treatment etc, It is especially suitable for conductivity measurement in the thermal power plant and the water treatment industry. It is featured by the double-cylinder structure and the titanium alloy material, which can be naturally oxidized to form the chemical passivation. Its anti-infiltration conductive surface is resistant to all kinds of liquid except fluoride acid. The temperature compensation components are: NTC2.252K, 2K, 10K, 20K, 30K, ptl00, ptl000, etc. which are specified by the user. K=10.0 or K=30 electrode adopts a large area of platinum structure, which is resistant to strong acid and alkaline and has strong anti-pollution capacity; it is mainly used for on-line measurement of the conductivity value in the special industries, such as the sewage treatment industry and the seawater purification industry.
Product | Industrial Conductivity Sensor |
Model | ACS12 |
Measure range | k=0.01(0~20)μS/cm |
k=0.1(0~200)μS/cm | |
k=1.0(0~2000)μS/cm | |
Accuracy | ±2%FS |
Process connection | 1/2NPT,3/4NPT |
Pressure resistance | <0.6MPa |
Housing material | SS316L or Titanium Alloy |
Working temperature | 0~60℃ |
Temperature compensation | NTC10k, Pt1000 (optional) |
Protection grade | IP56 |
