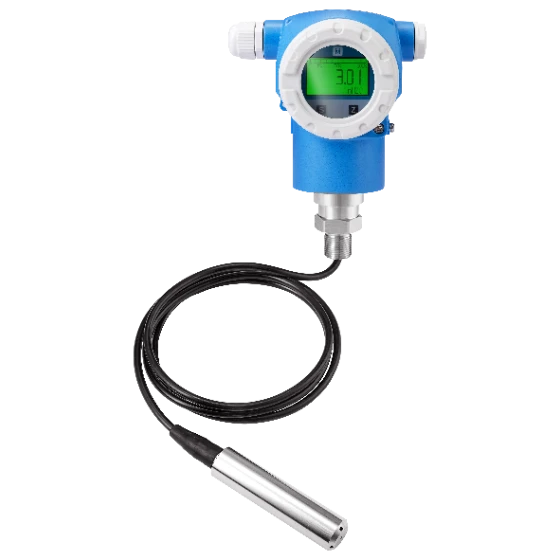

Submersible Level Transmitters
Submersible level transmitters is a highly reliable and accurate liquid level transducer. It can be widely used in liquid pressure and liquid level measurement, such as water, oil and other low corrosive liquids.
- Range:0~100m H2O
- Resolution:±0.2%
- Stability:±0.2%FS/year
- Output signal:4~20mA; HART; ModBus RS485
- Power supply:12~32VDC
Submersible Level Transmitters
-
316L sensor diaphragm, seamless connection, to ensure that the lead and the sensor probe waterproof;
-
pressure pipe design, to ensure that the protective layer and the lead paste clothes, waterproof, dustproof;
-
316L material, seamless connection, to ensure that the lead and the shield seamless connection, confined, nondestructive design;
-
high-quality, sophisticated shielding layer, sophisticated waterproof technology to ensure that no liquid leak detection;
-
12mm bold, high-quality waterproof line, the service life of up to 5 years, long-term immersion in the water is not corrosive, durable, not damaged.
Submersible level transmitters is a kind of transmitter that puts the sensor into the tank, water or oil to directly measure the liquid level. This submersible liquid level transmitter has accurate measurement, good long-term stability, excellent sealing and anti-corrosion performance, and can be directly put into water, oil and other liquids for long-term use.
Technical Parameters
| Product | Level transmitter |
| Measure range | 0~1m H2O, 0~2m H2O, 0~7m H2O, 0~20m H2O, 0~70m H2O, 0~100m H2O |
| Indication resolution | ±0.2% |
| Ambient temperature | -20~70°C |
| Output signal | 4~20mA; HART; ModBus RS485 |
| Stability | ±0.2%FS/year |
| Power supply | 12~32VDC |
| Medium temperature | -40 ℃~85°C |
| Probe material | SUS304; SUS316; PVDF |
| Diaphragm material | SUS316L; Hastelloy C; Tantalum |
| Shell material | Cast Aluminum Alloy; SUS304 |
