- Measure range:5~50m(optional)
- Blind zone:0.3m
- Accuracy:±0.5%FS, ±1%FS
- Power supply:220VAC, 50Hz; 24VDC, 120mA
-
Non-contact measurement:no need for direct contact with the liquid, avoiding the risk of contamination and corrosion, suitable for a variety of corrosive, chemical environments.
-
A variety of range options:5 meters, 10 meters, 15 meters three ranges can be selected, can be applied in different industrial environments.
-
Highly accurateThe resolution can reach 0.01% FS by measuring the time difference of sound wave from emission to reception.
-
Adaptable:Unaffected by the characteristics of the measuring medium (such as viscosity, density, color, etc.), pressure and other factors.
-
Real-time monitoring:real-time monitoring of liquid level changes, rapid response and recording of liquid level changes.
-
Long service life:Reduced instrument maintenance costs and failure rates due to non-contact measurements.

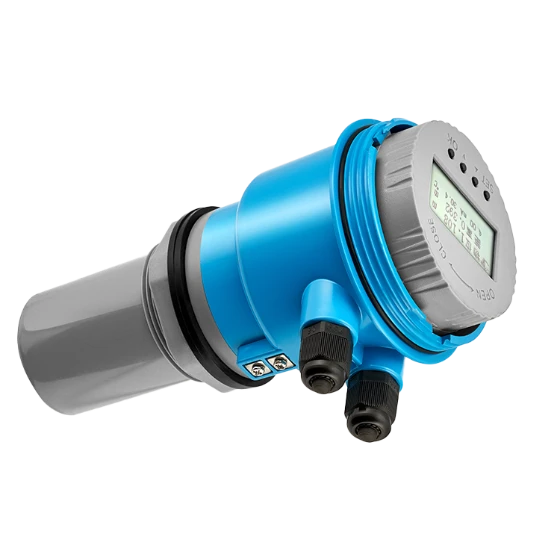

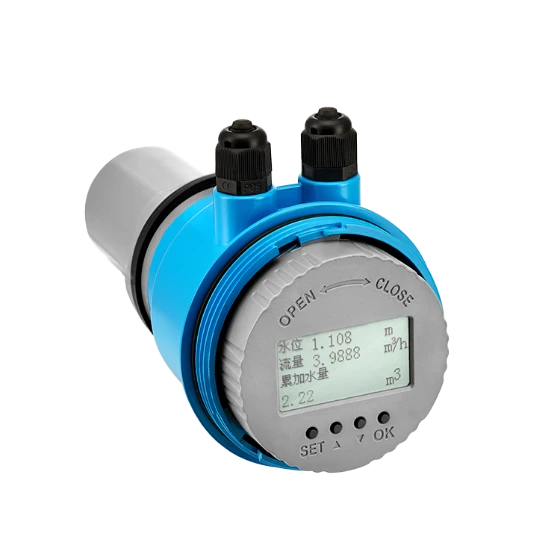

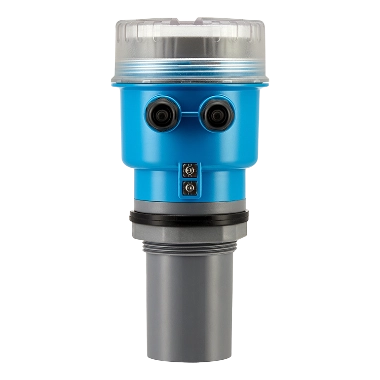

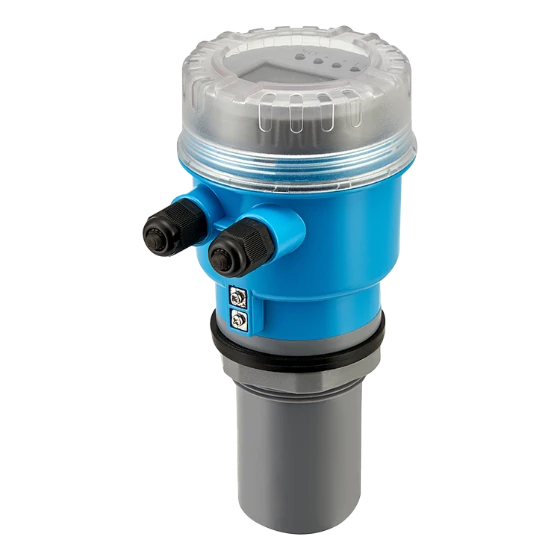

ultrasonic level meter adopts the principle of ultrasonic pulse to carry out non-contact measurement, it is a non-contact, highly reliable, cost-effective, easy to install and maintain the level measurement instrument. It does not need to contact the medium to meet most of the level measurement requirements, set the liquid level and water level ranging display and transmission functions in one, the measured medium is almost unlimited. Measurement accuracy of up to 0.3% FS, can be widely used in a variety of liquid and solid material height measurement. Suitable for strong acid and alkali and other harsh environments, widely used in petrochemical, environmental protection, food and many other fields.
Product | Ultrasonic level Meter |
Measure range | 5m, 8m, 10m, 15m, 20m, 30m, 50m (optional) |
Blind zone | 0.3m |
Accuracy | ±0.5%; ±1% |
Display | LCD |
Output (optional) | 4-20mA |
| Modbus RS485 | |
| 2 relays | |
Measuring variable | Level/Distance |
Power supply | 220VAC, 50Hz; 24VDC, 120mA |
Power consumption | <1.5W |
Protection degree | IP65/IP68(optional) |
