- Accuracy:±1%
- Nominal diameter:DN15…6000 / ½…240″
- Max temperature:up to +160°C / +320°F
- Output:4～20mA, Relay, RS485
- Digtal communication:RS485 Modbus, HART
-
Large Diameter Flowmeter:Provide a variety of specifications to choose from, measuring caliber range from DN15 to DN6000
-
Non-contact measurement:clamp-on ultrasonic flowmeter does not need to be in direct contact with the fluid, to avoid the traditional flowmeter fluid contamination problems that may exist.
-
Multi-material applicability:external clamping ultrasonic flowmeter can be applied to a variety of materials for the measurement of pipelines, such as metal pipelines (stainless steel, carbon steel, cast iron, etc.), plastic pipes, etc.
-
Convenient installation:Adopting external clamping type installation, there is no need to cut or punch the pipeline, and the installation process is simple and fast.
-
Simple maintenance:Regularly checking the working condition of the device and cleaning the sensor and clamps are sufficient, resulting in low maintenance costs.
-
No pressure loss:Due to its non-contact measurement, there will be no pressure loss on the fluid.

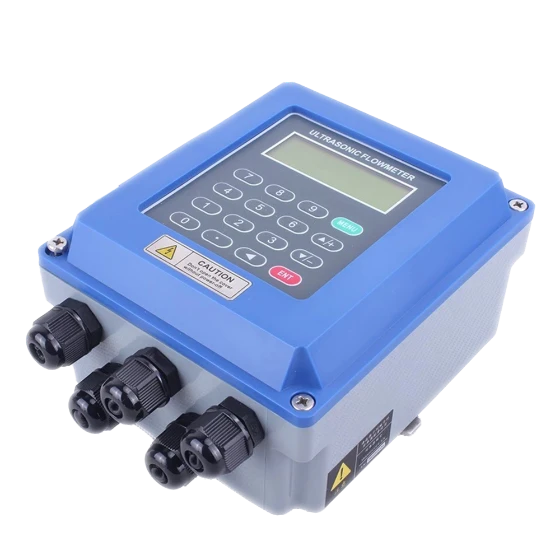

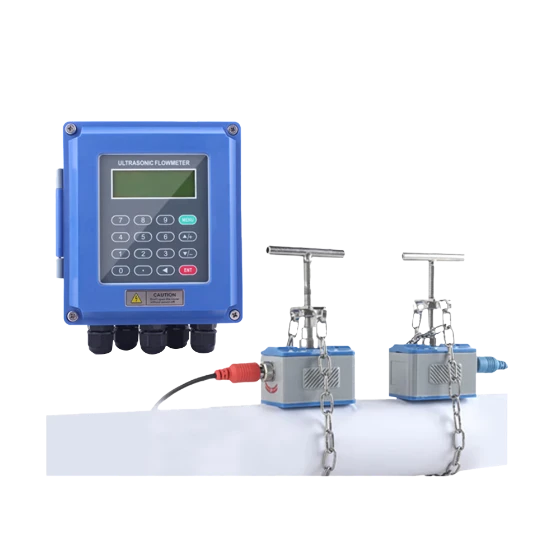

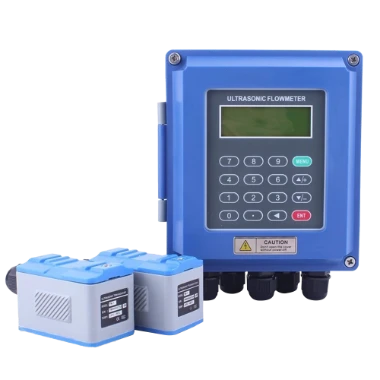

Clamp-on ultrasonic flowmeter is composed of two parts: host and clamp-on sensor. Its unique installation method, just gently paste the sensor on the surface of the pipeline, you can realize the flow measurement of various liquids. There is no need to disconnect the pipe and disconnect the flow of the operation, truly non-destructive installation. The external clamp sensor can be easily installed on the surface of various pipelines, and by selecting the appropriate sensor, it can be applied to a wide range of apertures from DN15 to DN6000. Provide a full range of solutions for your different needs.
Product | Clamp-on Ultrasonic Flowmeter |
Pipe Size | 15mm~6000mm |
Accuracy | ±1% |
Signal output | 1 way 4~20mA output |
| 1 way OCT pulse output | |
| 1 way replays output | |
Interface | RS485, support MODBUS |
Liquid Types | Virtually all liquids |
Working Temperature | Convertor: -20~60°C; Flow Transducer: -30~160°C |
Working humidity | Convertor: 85%RH |
Power Supply | DC8~36V or AC85~264V(optional) |
Date Logger | Built-in data logger can store over 2000 lines of data |
Case Material | ABS |
Dimension | 170*180*56mm(Convertor) |
Clamp-on ultrasonic flowmeter significant advantages
Non-contact measurement method, There is no need to destroy the pipeline during the measurement process, no need to stop production, the clamp on flow meter does not contact the measured medium, and there is no pressure loss.
Broad Pipe Size Compatibility:Suitable for pipes ranging from small to large diameters,typically from DN15 to DN6000,and compatible with various pipe materials. This clamp-on design offers significant cost savings,particularly for large-diameter pipes.
Versatile Liquid Measurement:Capable of measuring both conductive and non-conductive liquids,making it suitable for water,oil,chemical liquids,and more
Measurement range: The measurable flow rate range of the external clip-on is 0~10m/s.
8-36VDC, AC85-264V power supply modes are optional;
Protection grade: IP68
Process temperature: a) Standard clamp-on sensor: -30℃~90℃;
b) High-temperature clamp-on sensor: -30℃～160℃;
c) Plug-in sensor: -30℃～160℃;
d) Pipe segment sensor: -30℃～160℃.Applicable pipes: Ultrasonic flow meters are suitable for various lined or unlined metal and plastic tight pipes. Such as steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, fiberglass, etc.
