- Diameter NominalDN25~DN2200
- Accuracy±1%/±1.5%
- ElectrodeSUS316L, Customize
- ProbeABS, Polyurethane
-
Large-Diameter PipesSpecifically designed for pipes DN200 and above, offering significant savings on equipment and installation costs.
-
Installation and MaintenanceCan be installed or removed under pressure using a dedicated ball valve, eliminating downtime and enabling easy on-site maintenance.
-
Simple InstallationNo need for major pipeline modifications. Flexible installation makes it ideal for system retrofits or constrained environments.
-
High Value PerformanceProvides stable and reliable flow measurement—an ideal choice for projects with moderate accuracy requirements and tight budgets.
-
Remote Setup AvailableSupports remote-type configuration, allowing the sensor and transmitter to be installed separately for easier monitoring and data access.
-
Wide Range of Conductive LiquidsSuitable for applications involving wastewater, raw water, seawater, cooling water, and other conductive fluids.

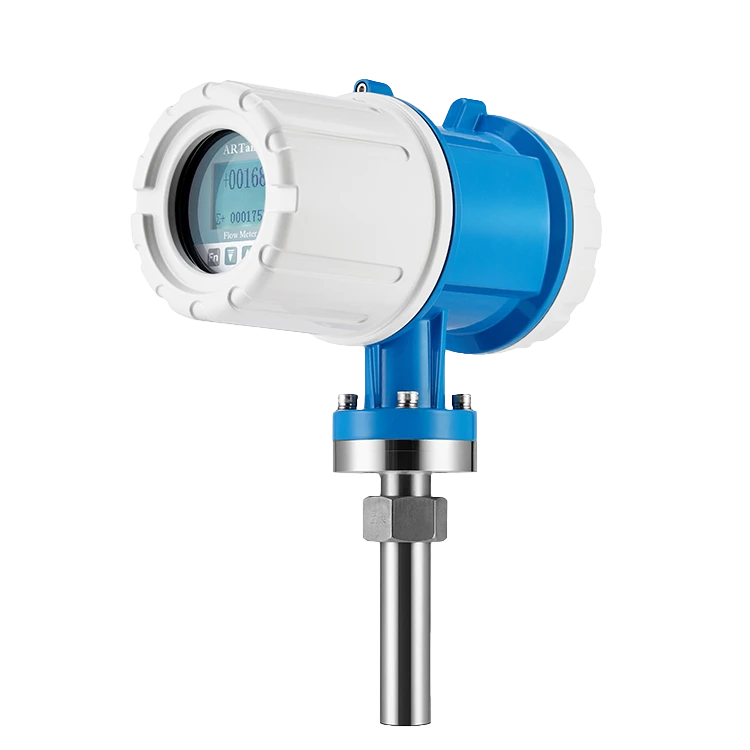

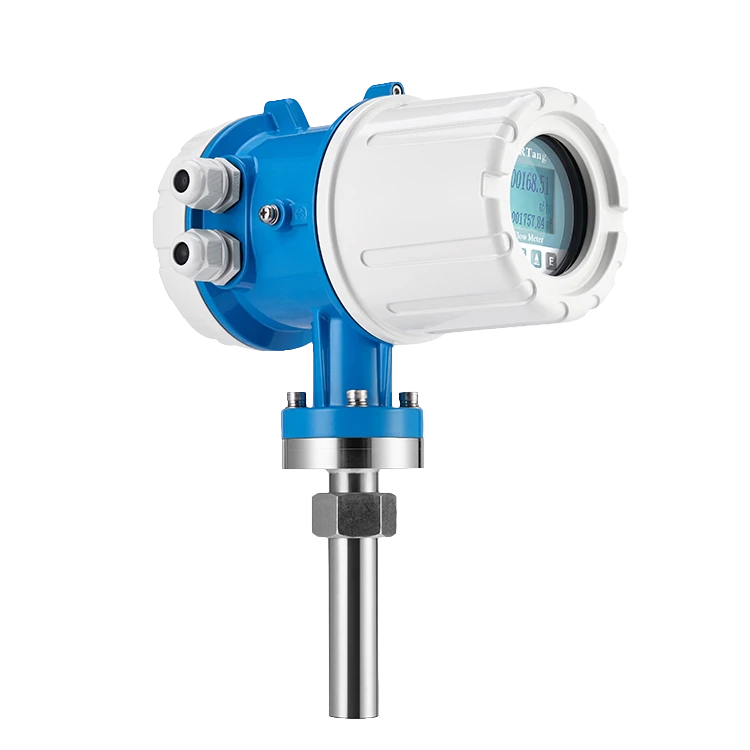

Insertion type electromagnetic flowmeter is in the pipeline electromagnetic flowmeter on the basis of the development of a new type of flow meter, it retains the advantages of pipeline electromagnetic flowmeter on the basis of pipeline electromagnetic flowmeter for pipeline electromagnetic flowmeter in the pipeline installation is difficult, the cost of the shortcomings of the insertion of electromagnetic flowmeter can be installed without stopping the water, but also can be installed in the cast iron pipe, cement pipe, PE pipe.
Model | Aimag I |
Applications | Water/Sewage |
Nominal Diameter | DN25~DN3000 |
Probe/Electrode Material | 316L,Customized |
Probe/Electrode Material Process Temperature | PVDF (-20℃~100℃) |
Process Connection | Welded, Flange, Threaded(Customize) |
Process Pressure | PN16 |
Accuracy | 士1.5%/1% |
Output | 4~20mA/Frequency/Pulse |
Communication | HART, Modbus RS485 PROFIBUS DP |
Certificates | CNEX, NEPSI CE,EAC |
Protection Grade | IP67 (IP68 optional) |
Insertion type electromagnetic flowmeter product characteristics
1. Insertion type electromagnetic flowmeter in the pipeline flow detection, simple installation, can not stop the flow, the scene can be opened with pressure, with absolute installation advantages and price advantages. Particularly suitable for supply and drainage pipeline flow measurement;
2. Lower than the general electromagnetic flowmeter manufacturing costs and installation costs. Especially suitable for large and medium diameter pipeline flow measurement.
3. no obstruction of flow parts in the measuring pipe, no pressure loss, straight pipe section requirements are low. Slurry measurement has a unique adaptability.
4. Measurement is not affected by the measured pipe material. Insertion type electromagnetic flowmeter is in the pipeline electromagnetic flowmeter on the basis of the development of a new type of flow meter, which retains the advantages of pipeline electromagnetic flowmeter on the basis of the pipeline electromagnetic flowmeter for pipeline electromagnetic flowmeter in the pipeline installation is difficult, the cost of large and other shortcomings, insertion type electromagnetic flowmeter can be installed without stopping the water, but also in the cast iron pipe, cement pipe, PE pipe installation.
The price of pipeline electromagnetic flowmeter in addition to lining and electrode materials, but also with its caliber size, the larger the caliber, the more expensive electromagnetic flowmeter, but insertion type electromagnetic flowmeter price basically does not change with the diameter of the pipeline, so in the measurement of large caliber pipeline flow, especially suitable for the use of insertion electromagnetic flowmeter, can greatly reduce the cost of equipment. Can greatly reduce the cost of equipment.
