- Pressure:-1 bar to 60bar
- Accuracy:±0.1% FS,± 0.2%FS,±0.5% FS,± 1% FS
- Long-term stability:≤±0.1% FS/ year
- Overload:2 times(10MPa or less); 1.5 times (10MPa or more)
- Response time:≤500ms (standard)
-
Compact Size and Easy Installation:The compact pressure transmitter is designed to be small and lightweight, making it easy to install on various equipment and pipelines without taking up much space.
-
4-20mA Two-Wire Output:This feature allows for long transmission distances and strong anti-interference capabilities.
-
Strong Anti-Interference Capability:With a specialized circuit design, the compact pressure transmitter has strong anti-interference abilities, effectively resisting external factors such as electromagnetic interference and mechanical vibration.
-
Multiple Output Signals Available:It supports various output signals, such as 4-20mA and 0-10V, making it adaptable to different control systems and display instrument requirements.
-
High Accuracy and Stability:It employs advanced pressure-sensitive elements and circuit processing technology, allowing for precise pressure measurement. It also has good stability, enabling long-term stable operation in harsh industrial environments.
-
Wide Operating Temperature Range:Capable of operating in extreme environments, with a temperature range of -40°C to 125°C, making it suitable for both high and low-temperature applications.

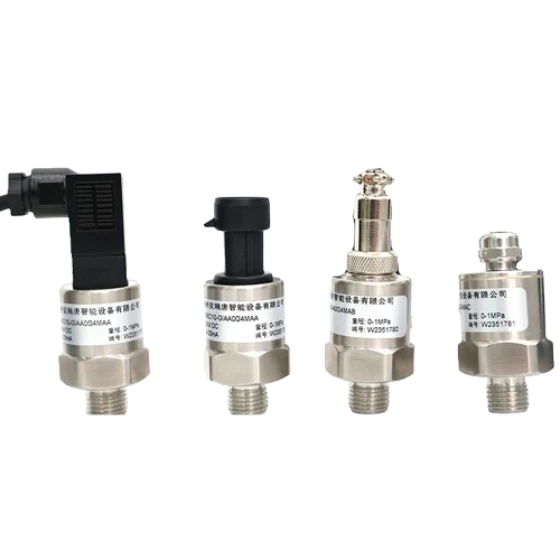

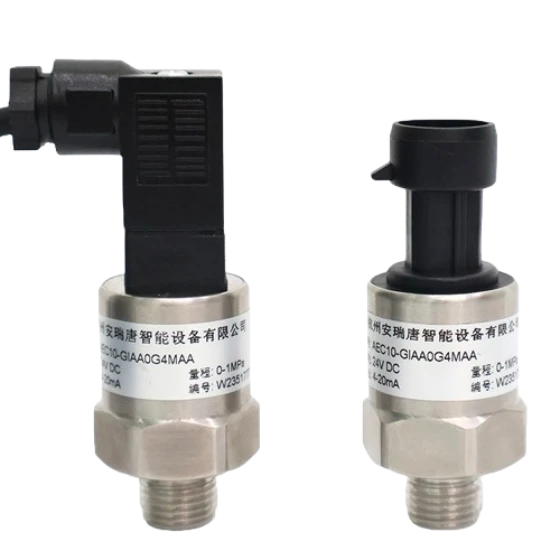

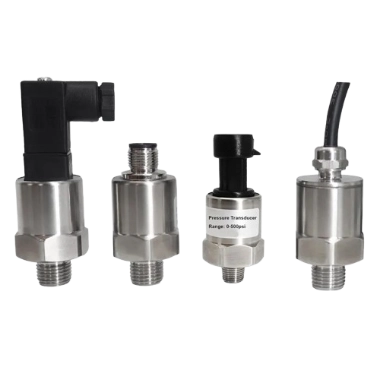

Water Pressure Sensor with compact design and stainless steel body SS304 and SS316L diaphragm, according to different media selection of imported ceramic capacitors, tantalum diaphragm, titanium alloy diaphragm sensors, can be resistant to acid and alkali and other corrosive media, for the different measurement medium AEA 10 series are widely used in aerospace, automotive, medical equipment, HVAC and other fields of pressure measurement.
Model Number | AE10 |
Application | Gauge Pressure, Absolute Pressure, Liquid Level |
Connection Process | G1/4, 1/4NPT, 1/8NPT, M12*1.5, Customize |
Measuring Range | 0~60 Bar |
Applicable Media | Liquid, Gas |
Compensation Temperature | -20...75℃ |
Storage Temperature | -45 ... 85℃ |
Ambient Temperature | -45 ... 85℃ |
Medium Temperature | -40 ... 125℃ |
Accuracy | 0.2%, 0.5% |
Housing Material | 304 Stainless Steel (Inner Core is 316 Stainless Steel) |
Output | 4~20 mA / 0.5-4.5V / 1 -5V / 0-10V / I2C |
Certificate | CE,NEPSI |
Waterproof Grade | IP65, IP67 |
