- Nominal diameter:DN15-DN300
- Nominal Pressure:1.6MPa
- Material:SS304,SS316
- Power Supply:DC 12-30V or 3.6V battery powered
- Measured medium:liquid,gas,steam
-
Temperature and Pressure MeasurementBuilt-in sensors measure the temperature and pressure of the fluid in real time.
-
CompensationAlgorithmically adjusts the flow meter's readings to eliminate errors due to temperature and pressure variations.
-
Improved AccuracySuitable for those applications where fluid properties vary greatly, such as oil, gas and chemical industries.
-
Adaptablecapable of handling a wide range of fluids, including liquids and gases.

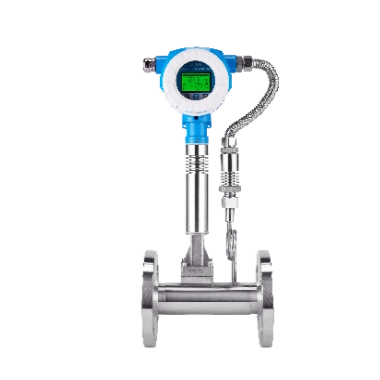

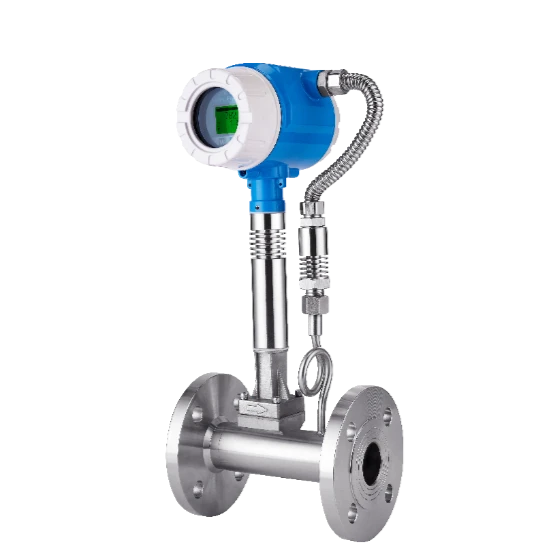

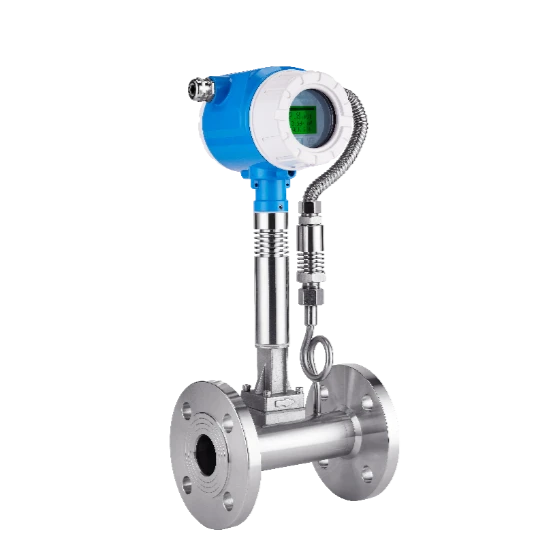

The vortex gas flow meter with temperature & pressure compensation also has a temperature sensor that allows the temperature of saturated steam to be measured directly and the pressure calculated to display the mass flow rate of saturated steam. The vortex gas flow meter with temperature & pressure compensation has a temperature and pressure sensor and can be used for gas flow measurement to directly measure the temperature and pressure of the gas medium, thus displaying the nominal volume flow rate of the gas.
Model | Aitex F |
Product | Vortex Gas flow Meter |
Diameter nominal | DN15~DN300 |
Applications | Gas, Liquid, Steam |
Nominal Pressure | PN10~250 |
Process Temperture | -200°C~400°C |
Process Pressure | Flange:GB, ANSI, DIN, JIS |
Output | 4~20mA/Frequency/Pulse/Switched output |
Communication | HART, Modbus RS485, PROFIBUS DP |
Current Input | 4~20mA |
Protection Grade | IP66/67 |
Accuracy | Volume flow(liquid):±1% |
| Volume flow(steam,gas):±1% | |
| Mass flow rate(liquid):±1% | |
| Mass flow rate(steam,gas):±1% |
Application of Vortex Gas Flow Meter
Industrial processes: flow monitoring and control in the petroleum, chemical, food and beverage industries.
Environmental monitoring: for applications such as emissions monitoring and water quality analysis.
HVAC systems: to optimize flow control in heating and ventilation systems.
