- Diameter nominal:DN15-DN300
- Accuracy:±1% /±1.5%
- Flow Range:Liquid:0.4-7.0m/s,Gas:4.0-60.0m/s
- Medium Temp:-40℃~250℃,-40℃~350℃
- Measured medium:liquid,gas,steam
-
The main body of the product has no moving parts, high reliability, long-term stability, simple structure and easy maintenance.
-
The output of the sensor is pulse frequency, which is linear with the actual flow of the measured fluid, with no drift of the zero point and very stable perform
-
Structure of various forms, pipe type, insertion type flow sensor and other forms.
-
Flexible installation mode, according to the different process piping at the site, it can be installed horizontally, vertically or inclined at different angles.
-
The circuit adopts various protection modes, anti-surge and strong adaptability.
-
Long-life lithium battery: equipped with 3.6V high polymerization lithium battery, with high storage energy density, the service life of up to 1 year or more.

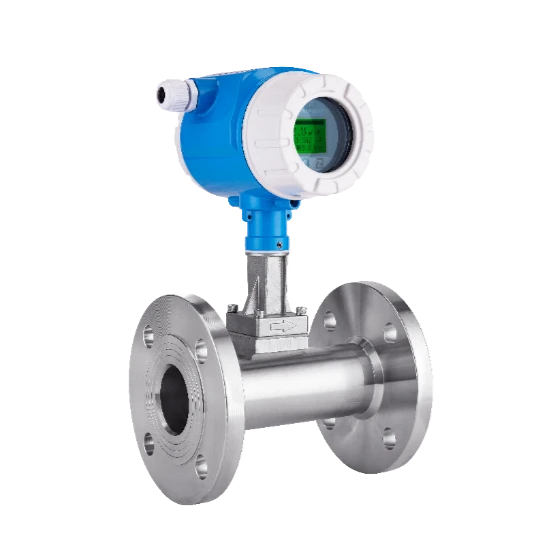

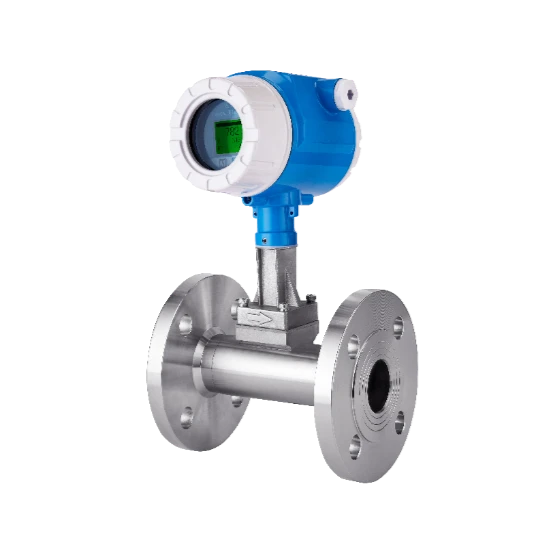

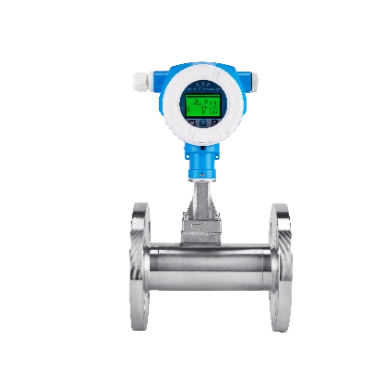

Vortex flowmeter for saturated steam is based on Karman (Karman) vortex principle of research and production of measuring gas, steam or liquid volume flow rate, standard volume flow rate or mass flow rate of the volume flow meter. Mainly used for industrial pipeline media fluid flow measurement, such as gas, liquid, steam and other media, but also can measure the turbid liquid containing small particles, impurities, widely used in petroleum, chemical, pharmaceutical, papermaking, metallurgy, electric power, environmental protection, food and other industries.
Model Number | Aitex E |
Application | Gas, Liquid, Steam |
Nominal Diameter | DN15~DN150 |
Nominal Pressure | PN40 |
Process Temperature | -40°C~260°C |
Process Connection | Flange: GB, ANSI, DIN, JIS |
Output Signal | 4~20mA Frequency/Pulse/Switch Output |
Communication | HART, Modbus RS485, PROFIBUS DP |
Current Input | 4~20mA |
Protection Grade | IP66/IP67 |
Volume Flow Accuracy | Liquid: ±0.75%, Steam/Gas: ±1% |
Mass Flow Accuracy | Liquid: ±0.85%, Steam/Gas: ±1.5% |
Product features of vortex flowmeter
The main body has no moving parts, high reliability, long-term stability, simple structure and easy maintenance.
Higher accuracy, the measurement accuracy of conventional liquid is ±1.0%; gas measurement accuracy is ±1.5%.
Sensor output for the pulse frequency, its frequency and the actual flow of the measured fluid is linear, zero point without drift, performance is very stable.
Circuit to take a variety of protection modes, anti-surge, strong adaptability.
The product is highly adaptable to high and low temperatures, and is compatible with liquid, gas, thermal oil and steam measurement.
