- Nominal diameter:DN15~DN600
- Accuracy:±0.5%/±0.2%
- Conductivity:≥2us/cm
- Process Temperature:-40 ~ +180 ℃
-
High concentration of measured mediumMulti-frequency square wave excitation mode to ensure the accuracy and sensitivity of measurement.
-
Minimal MaintenanceHas no moving parts or flow obstructions, which virtually eliminates maintenance and pressure drops.
-
Fast response speedResponse speed ≥0.8s, with damping coefficient adaptive capability.
-
Low conductivity requirementLess affected by medium viscosity, temperature, pressure, density, etc., it can measure liquids with a conductivity of 2μS/cm.
-
Rich display contentCan display total amount, instantaneous flow, flow rate, percentage flow, etc.

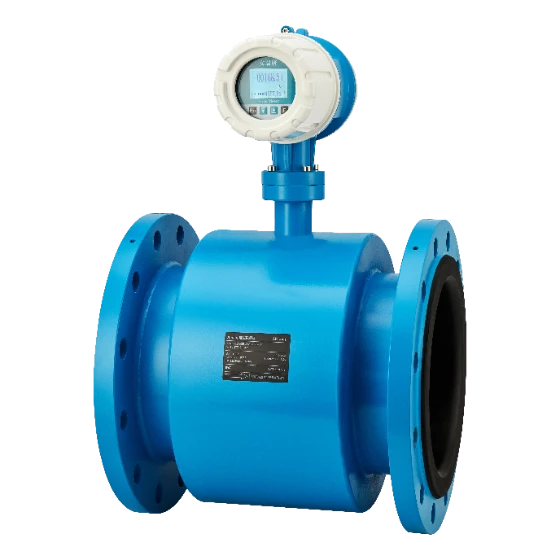

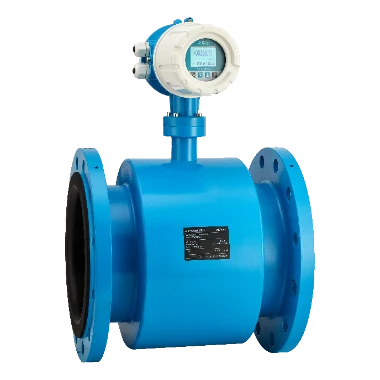

ARTang S slurry electromagnetic flowmeter is specially used to measure slurry media such as pulp, mud, ore slurry, coal-water slurry, etc. The product adopts multi-frequency excitation mode, with a response speed of ≥0.05s and a minimum conductivity of up to 2μS/cm. It is particularly suitable for liquid-solid two-phase flow, such as pulp, mud, ore pulp, and water-coal slurry. The mass concentration ratio of pulp can reach 10%, and the solid content of ore pulp can reach 80%.
Model Number | Aimag S |
Nominal Diameter | DN15 ~ DN600 |
Electrode Material | Stainless Steel 316L; Hastelloy B; Hastelloy C; Platinum; Tantalum; Titanium |
Lining Material | PTFE; Neoprene; Hard Rubber; Polyurethane; PFA; FEP |
Ambient Temperature | -20℃~60℃, with display |
-40℃~60℃, without display | |
Process temperature | 0℃～80℃, Neoprene |
-20℃～65℃, Polyurethane | |
-40℃～130℃, PTFE | |
-20℃～150℃, PFA | |
-20℃～180℃, PFA high temperature | |
Measuring Range | 0.1m/s~12m/s |
Conductivity | ≥2us/cm |
Output Signal | 4~20mA / Frequency / Pulse |
Communication | Modbus RS485(Standard), HART(Optional), GPRS/GSM (Optional) |
Explosion Certification | NEPSI Ex db eb ia IIC T3…T6 Gb |
Certification | ISO, EAC, 3A, CE, SIL |
Protection Grade | IP67 / IP68(optional) |
