- Measurement Range:0-35KPa .... 0-1MPa.....0-70MPa
- Accuracy:± 0.25%
- Output:4~20mA, 4~20mA+HART, MODBUS RS485
- Protection Level:IP65/IP67
- Explosion -Proof:NEPSI EXDB IIC T6 GB
-
Secure InstallationThe flange connection ensures a stable, leak-proof seal, making it ideal for high-pressure, high-temperature, or hazardous media.
-
Level and Density MeasurementWell-suited for measuring liquid level or density in tanks and pipelines, especially in closed vessels or with viscous, corrosive, or crystallizing fluids.
-
Low MaintenanceWith a flush diaphragm design, it resists buildup and clogging—perfect for slurries, sewage, or other challenging media with minimal cleaning required.
-
High Accuracy and Long-Term StabilityEquipped with advanced sensing elements and digital compensation technology to deliver reliable, accurate performance with strong resistance to interference.
-
Harsh ConditionsAvailable in 316L stainless steel, Hastelloy, Tantalum, or PTFE coating to meet strict corrosion resistance requirements in industries like food, chemical, and pharmaceutical.
-
Multiple OutputSupports 4–20mA, HART, Modbus, and other protocols.

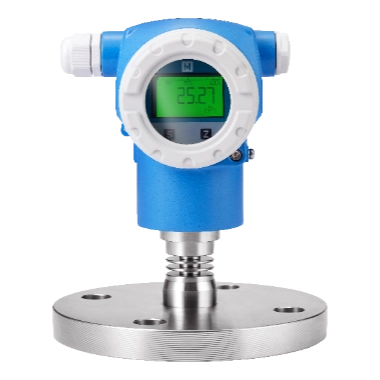

Flange Pressure Transmitter adopts flange connection with 316L isolation diaphragm installation, with heat sink in the middle, generally used for 150℃ high temperature occasions, corrosive occasions, measuring pressure or liquid level. Selection of imported diffusion silicon type as the sensitive element, the use of special integrated module, fine temperature, zero, full range and non-linear compensation, to achieve the liquid, gas, steam and other media pressure changes in the accurate measurement and transmission output. The transmitter can be widely used in petroleum, chemical, coal, medicine, food, textile and other fields of liquid pressure automation measurement and control.
Model Number | AEA17 |
Application | Gauge Pressure, Liquid Level |
Connection Process | Flange |
Measuring Range | 0-35KPa .... 0-1MPa.....0-70MPa |
Overload Presure Limit(OPL) | Max 140 Mpa |
Process Temperature | -40℃ ~ 315℃ |
Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
Accuracy | ±0.25% |
Ambient Temperature Effect | ≤±0.2%F.S/10°C |
Long-term Stability | ≤±0.2%/URL (12 months) |
Response Time | 0.25s |
Power Supply Influence | ≤±0.005%/URL/V |
Vibration Effect | ≤±0.25%/URL/g |
Power Supply Voltage | 10~32 VDC |
Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
Certificate | CE, NEPSI |
Waterproof Grade | IP65/IP67 |
