- Accuracy:±0.05%, or ±0.025%
- Measuring ranges:-1/0 up to 700bar (-15/0 up to +10,500psi)
- Process temperature:-40 to +125°C (-40 to +257°F)
- Process connections:Threads and flange connections
-
Pressure forms can be selected (absolute pressure, gauge pressure, liquid level) Accuracy level: 0.5%, 0.25%, 0.1% optional, special customization up to 0.05%;
-
Explosion-proof design, one-piece stainless steel/casting shell, sturdy and reliable.
-
Output signal: 4~20mA, RS485 (standard Modbus-RTU protocol), (0~10VDC, 0~5VDC, 1~5VDC, 0.5~2.5VDC customization)
-
Built-in signal processing circuit with short-circuit protection, reverse polarity protection and instantaneous over-current protection, safer.
-
Corrosion-resistant, wide range temperature compensation, good linearity, with reverse polarity protection, instantaneous overcurrent, overvoltage and anti-interference protection measures.
-
Intrinsically safe explosion-proof grade: NEPSI Ex db IIC T6 Gb;

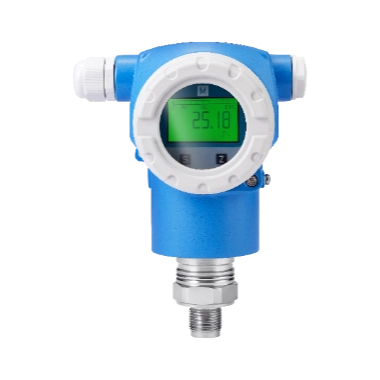

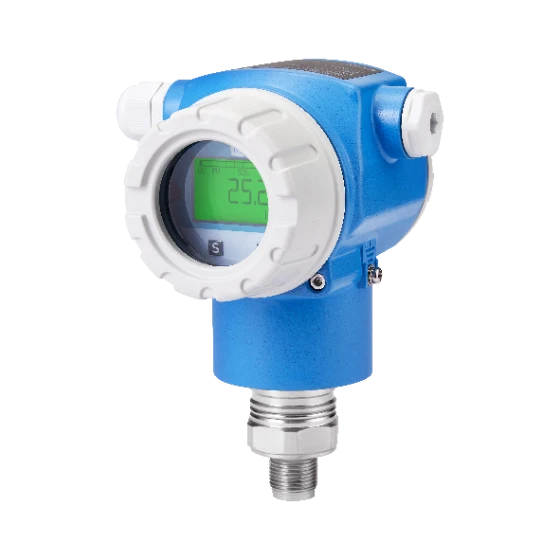

Digital pressure transmitter adopts high-performance imported diffusion silicon pressure sensing chip, with advanced circuit processing and temperature compensation technology, to convert pressure into linear current or voltage signal. Due to the full isolation circuit design, it greatly improves the stability and anti-interference ability of the whole machine.
In addition to the three basic functions of adjusting the zero position, range and zero pressure fine-tuning of other transmitters, it also has the functions of zero migration, setting and displaying the engineering quantity, linear and open-square conversion, setting the damping time, and fixed current output test.
This product is 3051 pressure transmitter series, belongs to the intelligent pressure transmitter, diffusion silicon or monocrystalline silicon optional, explosion-proof shell optional, 4~20mA 0~10V optional, MODBUS HART protocol optional.
Model Number | AEA16 |
Application | Gauge pressure, Absolute pressure, Liquid level |
Connection Process | Thread, Flange, Clamp |
Measuring Range | 0~40 Mpa |
Overload Presure Limit(OPL) | Max 50 Mpa |
Process Temperature | -40℃ ~ 315℃ |
Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
Accuracy | ±0.1%URL or ±0.075%URL(Optional) |
Power Supply Voltage | 10~32 VDC |
Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
Certificate | CE, NEPSI |
