A chemical flow meter is designed to measure the flow of both corrosive and non-corrosive gases and liquids passing through it. Depending on the substance being measured and the specific application, various types of flow meters are available for selection. Based on its specific type, a flow meter will measure either the volumetric or mass flow rate of the liquid, gas, or steam passing through it.

Different Types of Chemical Flow Meters

Electromagnetic Flow Meters

Electromagnetic flow meters are the preferred choice for all conductive liquids (in both acidic and alkaline applications). They are ideally suited for conductive fluids such as water, wastewater, and chemicals. Their compatibility with highly corrosive fluids makes them an excellent option as "chemical-resistant flow meters."

Coriolis Flow Meters

Coriolis flow meters are among the most accurate flow measurement devices, suitable for handling a wide range of chemicals, including high-viscosity fluids. These meters utilize the Coriolis effect to measure the mass flow rate of liquids or gases. They are highly versatile and can simultaneously measure mass flow, volume flow, viscosity, temperature, and density. This provides you with maximum control and safety.

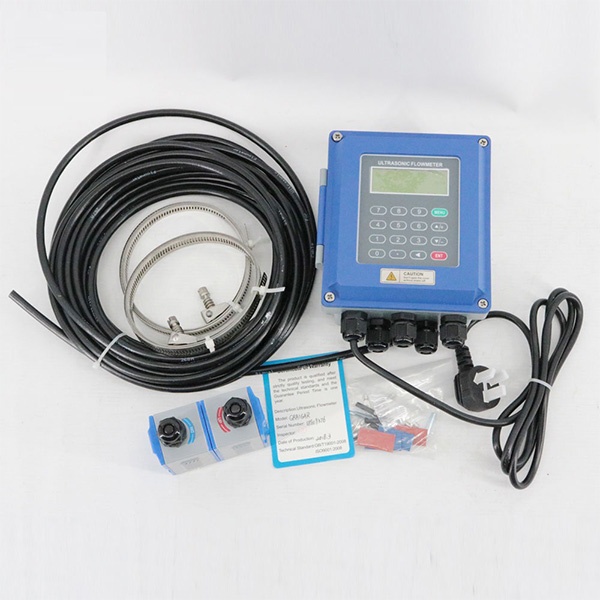

Ultrasonic Flow Meters

Ultrasonic flow meters are non-intrusive and suitable for a wide range of fluid types. They are ideal for corrosive and high-purity chemical applications, making them a perfect choice as "chemical injection flow meters" where direct contact with chemicals is undesirable.

Vortex Flow Meters

Vortex flow meters are used in chemical plants requiring steam or gas flow measurement. They are well-suited for monitoring "chemical feed flow" in industrial processes and perform best with low to medium viscosity liquids. These meters offer high accuracy and can be adapted to a variety of fluids.

Turbine Flow Meters

Turbine flow meters are a popular choice for measuring clean, stable fluids. While they are less suitable for high-viscosity or dirty fluids, they perform exceptionally well with non-corrosive liquids. They are commonly used to monitor and control chemical dosing in water treatment plants, serving as reliable "chemical pump flow meters" in non-corrosive environments and frequently applied in "chemical injection flow meter" systems for additives.

What Should Be Considered When Selecting a Chemical Flow Meter?

Several factors need to be considered when selecting a flow meter for use in chemical processes. The first is the accuracy and repeatability of the flow meter. These factors are crucial for ensuring the final product meets required specifications and for the efficient operation of the process.

Flow Range

The next consideration is the flow range that the meter can measure and control. It is important to determine whether the meter is suitable for the specific application and can operate under the existing process conditions.

Compatibility with the Process Fluid

Another critical factor is the compatibility of the flow meter with the process fluid. Many low-flow meters are designed for use with specific fluid types, so verifying that the meter is compatible with the fluids used in the process is essential.

Installation and Maintenance

Finally, the ease of installation and maintenance of the flow meter should be considered. Check whether the flow meter can be installed quickly and maintained easily. This will significantly reduce downtime and make the process run more smoothly.

Name1

Name2

Electromagnetic Flow Meters can be used to measure conductive liquids, solutions prone to crystallization or corrosion (such as those containing salts and acids), slurries, other liquid-solid media that may cause abrasion to measurement components, and common fluids like wastewater and pure water.

When using an electromagnetic flow meter, the following points should be noted:

1. This type of flow meter cannot measure organic solvents, petroleum products, or any other liquids with an electrical conductivity below 5×10⁻⁶ S/cm. It is also unsuitable for highly viscous liquids, gases, and steam.

2. The measurement principle of electromagnetic flow meters is based on Faraday's Law of Electromagnetic Induction. The intrusion of any contaminants can affect the conductivity of the medium, thereby impacting the meter's performance. Particulates, oils, or other debris in the medium can adhere to the electrodes. This not only reduces electrode sensitivity but may also lead to electrode corrosion or insulation issues, ultimately compromising the meter's accuracy and service life. Therefore, a filter should be installed upstream of the flow meter, and regular inspection and cleaning should be performed to ensure its accuracy and reliability.

3. These flow meters are generally not designed for use in very low or high-temperature environments. If the fluid temperature is exceptionally low or high, the liner and electrode materials must be selected scientifically to match the specific operating conditions.

Practical Application Scenarios of Electromagnetic Flow Meters in Chemical Production

Electromagnetic flow meters are widely used in chemical production, including but not limited to the following aspects:

Flow Monitoring for Chemical Raw Material Transport

In chemical production, the transportation of raw materials is a critical step. Electromagnetic flow meters can be used to monitor the flow of chemical raw materials in pipelines, ensuring accuracy and stability in material conveyance. For example, during ethylene production, monitoring the flow of ethylene enables effective control of process parameters, thereby ensuring product quality.

Flow Measurement and Monitoring for Chemical Products

Electromagnetic flow meters are also suitable for flow measurement and monitoring of chemical products. For instance, in fertilizer production, these meters can track the flow of various raw materials and products to ensure precise proportioning and consistent product quality.

Pipeline Clogging Prevention Monitoring

In chemical production, preventing pipeline clogging is a critical issue. Clogged pipelines can not only reduce production efficiency but also lead to equipment failure and accidents. Electromagnetic flow meters can monitor the flow rate and volume of fluids within the pipelines. When abnormal flow rates or volumes are detected, the meter can promptly trigger an alarm to help prevent pipeline blockages.

Auxiliary Equipment Flow Monitoring

Flow monitoring is also essential for auxiliary equipment in chemical processes to ensure proper operation. For example, in high-temperature furnaces, monitoring water flow with an electromagnetic flow meter helps maintain the normal functioning of the cooling system and prevents equipment overheating.

Wastewater Treatment Flow Monitoring

Chemical production generates significant amounts of wastewater, which must be treated to meet discharge standards. Electromagnetic flow meters can be used to monitor flow rates during wastewater treatment, ensuring effective and stable processing. For instance, at sewage treatment plants, monitoring sewage flow with these meters helps guarantee smooth operation and safe effluent discharge.
