- MODBUS RTU Communication Protocol
- Convenient Human-Machine Interface
- Temperature and Pressure Compensation
- Directly Measurable
- Small Amplitude of the Measuring Tube
-
It achieves a measurement accuracy of up to ±0.1% or ±0.2%, ensuring highly reliable results.
-
The density measurement resolution reaches 0.001 g/cm³, while temperature measurement error remains below 0.5°C.
-
Capable of measuring various media, including high-viscosity liquids, slurries containing solid particles, liquids with trace gases, and medium- to high-pressure gases of sufficient density.
-
Installation requirements are minimal (no need for upstream or downstream straight pipe sections). The sensor has no moving mechanical parts.

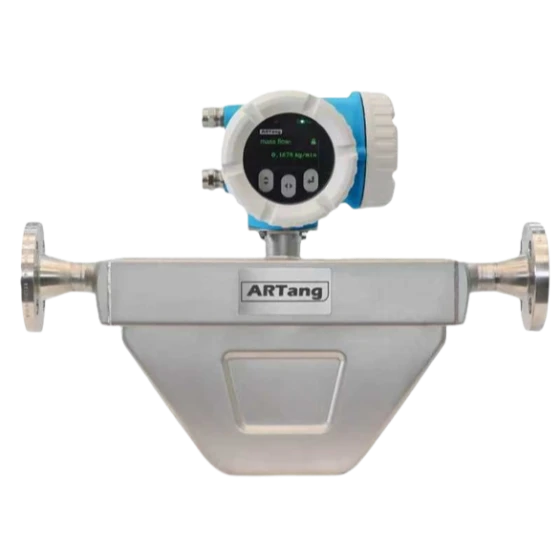

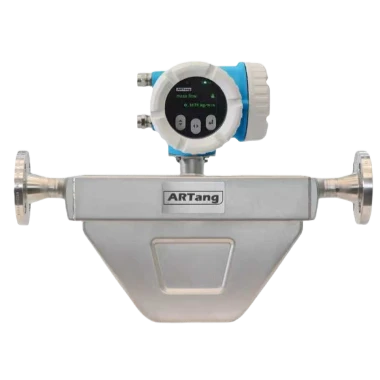

Coriolis mass flow meters provide highly accurate flow measurement for liquids and gases across industries like oil, gas, chemicals, and food production. Based on the advanced Coriolis effect and technology, Coriolis meters directly measure mass flow, density, and temperature with precision up to ±0.1%.
Coriolis flow measurement solutions offer you three choices: U-type Coriolis mass flow meter, triangular Coriolis mass flow meter, and straight tube Coriolis mass flow meter. All of them are seamlessly tailored to meet every specific demand of your industry.
Diameter | DN2-DN300 |
Measurand | Mass flow,density,temperature |
Density accuracy | earth 0.002g/cm³ |
Accuracy | 0.1%,0.15%,0.2% |
Temperature | -40~+60℃ |
Power consumption | <15W |
Power supply | 220VAC; 24VDC |
Signal output | 4~20mA, RS485, HART |
Ingress protection | Sensor: IP67, Launcher: IP65 |
Process pressure | (0~4.0)MPa |
Medium temperature | Standard type: (-50～200)℃, (-20～200)℃; High temperature type: (-50～350)°C; Low-temperature type: (-200～200)°C |
Transmission outpu | (4～20) mA, output load (250～600) Ω |
