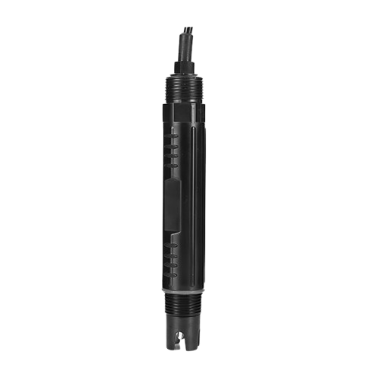

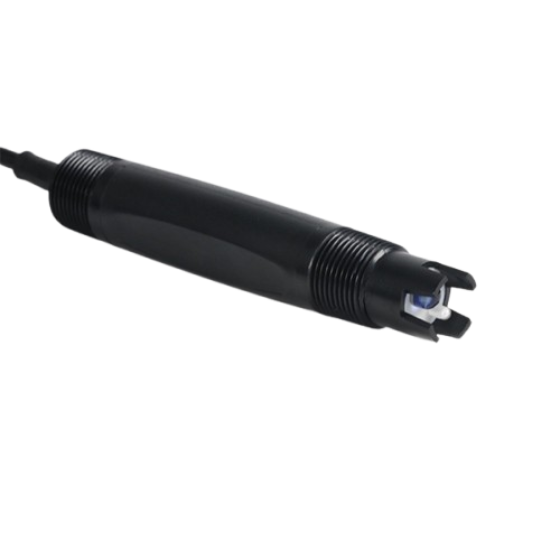

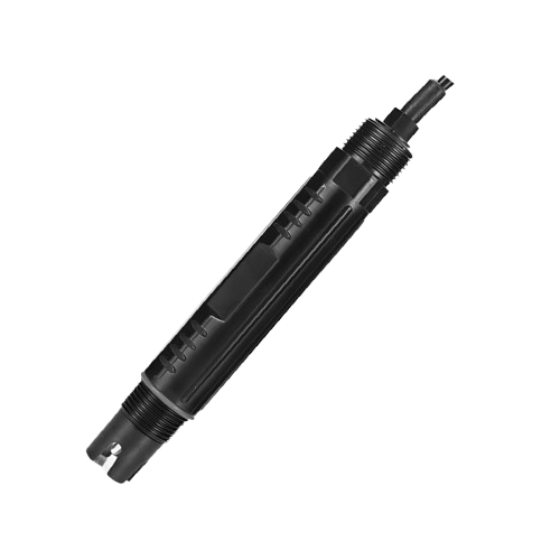

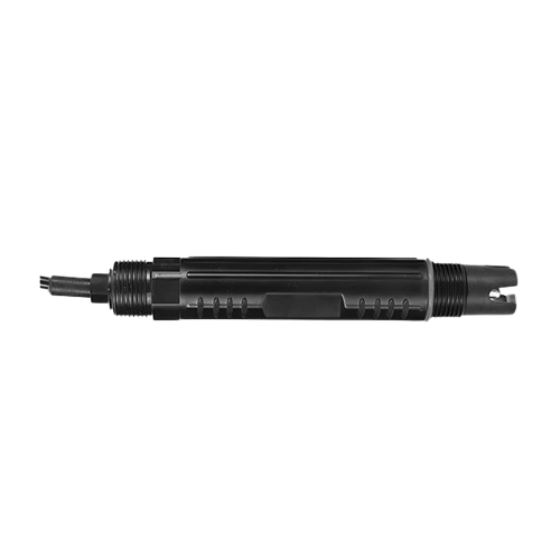

APS15 Industrial Desulfurization pH Electrode
Industrial Desulfurization pH Electrode for Desulfurization is used for pH measurement in flue gas desulfurization, the electrode adopts gel electrode, maintenance free, the electrode can still maintain high accuracy under high temperature or high pH value.
- Measure rangePH:0.0~14.0
- Temperature compensation2.252K , PT100
- Temperature0~95℃
- AccuracypH: ±0.1pH
- Pressure6bar
Industrial Desulfurization pH Electrode
-
It adopts gel reference electrolyte, low maintenance, pressure resistant and can be sterilized at high temperature;
-
The electrode is suitable for: chemical industry, metallurgy, power plant power station, desulfurization and denitrification and other process analysis scenarios.
-
The special structure of the desulfurization pH electrode is designed to achieve a maximum withstand voltage of 20 bar.
-
The desulfurization pH electrode is a non-porous design, thereby eliminating the possibility of contaminating or corroding the reference electrode or electrolyte.
Industrial Desulfurization pH Electrode for Desulfurization is used for pH measurement in flue gas desulfurization, the electrode adopts gel electrode, maintenance free, the electrode can still maintain high accuracy under high temperature or high pH value.
Application: Used in various industrial wastewater, environmental protection water treatment, flue gas desulfurization in the pH measurement, especially the power plant boiler desulfurization process.
Technical Parameters
| Product | Industrial Desulfurization pH Electrode |
| Model | APS15 |
| Measure range | PH:0.0~14.0 |
| Operating temperature | 0～95℃ |
| Pressure resistance | ≤0.6MPa |
| Accuracy | ±0.05pH |
| Resolution | 0.01pH |
| Internal Resistance | ≤250MΩ (25℃) |
| Protection Grade | IP56 |
| Shell material | PPS |
| Cables | Low noise cable wires |
