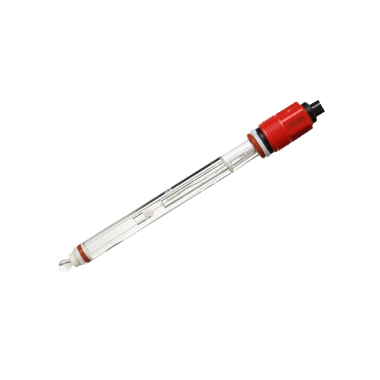

APS13 High Temperature pH Sensor
APS13 High Temperature pH Sensor is widely used in wastewater treatment and fields including mining and smelting, papermaking, paper pulp, textiles, petrochemical industry, process of semiconductor electronic industry and downstream engineering of biotechnology.
- Measuring range:0-14pH
- Temperature range:0-130℃
- Resolution:0.01pH,1mV
- Standard cable:5 meters (customizable)
High Temperature pH Sensor
-
Electrode in the case of not connected to the counterpressure, pressure resistance 0.0 ~ 6Bar, and can be used directly for temperature 135 ℃ sterilization.
-
Built-in temperature probe, temperature compensation, accurate measurement results, fast and stable response.
-
No need to replenish electrolyte, low maintenance cost.
-
Adopting K8S K9 VP split socket, PG13.5 installation thread, can be used for foreign imports of electrodes for interchangeable use.
-
Electrode length can be selected according to the needs of 120, 150, 200, 250, 300mm, and can be used with 316L stainless steel sheath or PPT sheath.
-
Can be customized according to different working conditions.
APS13 High Temperature pH Sensor is made of pH sensitive glass film resistant to hydrofluoric acid.The application of this sensor is not only for the determination of pH value in water containing hydrofluoric acid, but also in the dilution control of hydrofluoric acid in semiconductor wafer manufacturing and chip production.
Technical Parameters
| Product | high temperature ph sensor |
| Model | APS 13 |
| Measuring range | 0-14pH |
| Temperature range | 0～145℃ |
| Pressure resistance | 0~6Bar at 25℃ |
| 5Bar at 130℃ 0~6Bar | |
| Accuracy | ±0.05pH |
| Resolution | 0.01pH |
| Internal resistance | ≤250MΩ (25℃) |
| Protection level | IP56 |
| Housing material | Glass electrode |
| Process connection | Upper and lower NPT3/4 external thread |
| Cable | Low noise cable |
